Description
The BlueFlame Biodigester system has the following unique features that make it very effective in wastewater management.
- Size – The Biozone Biodigester’s size is not fixed. It is determined by the amount of waste produced at the premises in which it will be installed. The right size makes sure that the right waste retention time is achieved and this makes sure that the waste undergoes full treatment.

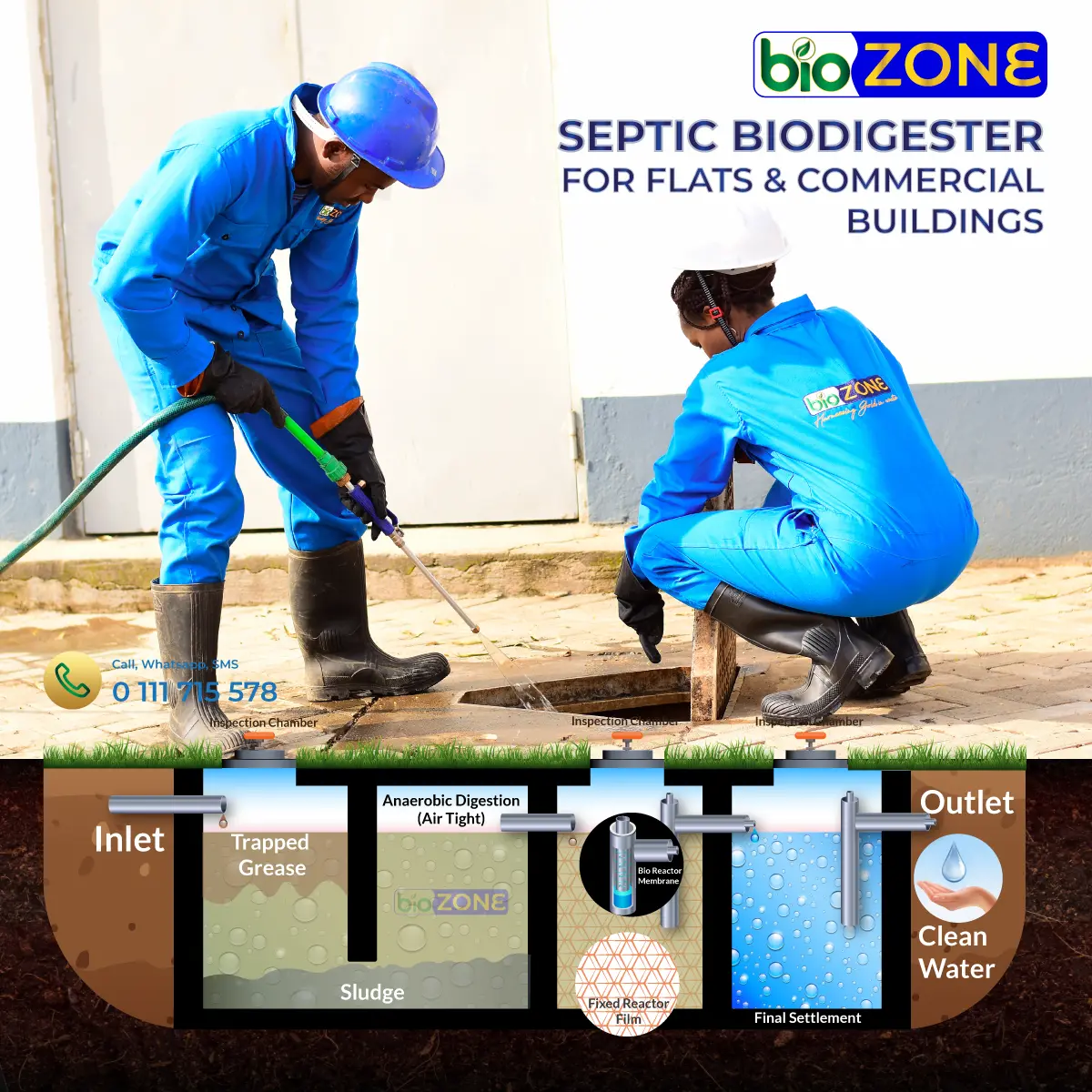

- It has four chambers – The second unique feature of the Biozone Biodigester is that it is a four-chamber system.
- The first chamber receives raw waste and traps all inorganic and non-biodegradable waste like plastics, sanitary pads, and baby diapers that can be removed during maintenance sessions. It also acts as a trap for fat and grease.
- The second chamber is airtight and is inoculated with bacteria and enzymes. This creates an optimum environment for anaerobic digestion and is the chamber in which most organic solid waste is broken down into water and gas.
- The third and fourth chambers provide an environment for maximum settlement of any suspended solids prior to discharge. They also enable denitrification, further reducing the ammonia in the final effluent, making it odorless. Clean water exits the fourth chamber via the outlet to the leaching lands.
- Large inspection points – The third unique feature of the Biozone Biodigester septic system is its larger inspection points. Its inspection points are 450 millimeters by 600 millimeters in area. This makes it possible to reach every point in the system and thereby makes full servicing of the system easy.
- Presence of well-fitted downpipes – The fourth unique feature of the Biozone biodigester is the presence of well-fitted downpipes in the system. These downpipes regulate the flow of water from one chamber to the next without passing floating or settled waste. They also minimize water turbulence in the system, thereby increasing the rate of suspension and settling of waste in the right chambers.
- Presence of membrane bioreactors – The fifth unique feature of the Biozone biodigester is the presence of the membrane bioreactors in the system. They are fitted between the third and fourth chambers and at the outlet in the fourth chamber. They enhance water filtration and make sure that the final effluent is over 90% solids-free.
Biodigesters are a closed system; therefore, it gives off no odor from food waste; this will eliminate flies and rodents from the facility, increasing hygiene. Also, eliminating food waste on-site saves money by reducing hauling costs. The capacity of food a biodigester can process depends on the size; larger the digester more food it can handle. Biodigesters are a living system and require minimal maintenance. Biodigester treatment plant provides the modern environmentally friendly alternative to septic tanks
HAS A FIXED FILM REACTOR
- The fixed Film Reactor combines aerobic, anaerobic and anoxic zones and increases the Sludge Retention Time, promoting better nitrification compared to simple suspended growth systems
- System nitrification is also restored faster since a large mass of nitrifiers is retained on the fixed-film
- Improved process stability
- In various studies it has been noted that the Sludge Volume Index (SVI) improves and has less variation when FFS upgrades are implemented
- Reduced Sludge Production
ADJUSTABLE TO DIFFERENT TYPES OF SIZES & NEEDS
You can also contact us here before your purchase for more specifications consultations and details modifications TALK TO US
